A633 Carbon Steel Coil

ASTM A633 steel includes four grades: A, C, D, and E, of which the thickness of grade C can reach 4 inches and the thickness of grade E can reach 6 inches. ASTM A633 steel specification is based on the standard specification for standardized high-strength low-alloy structural steel plate, which requires high notch toughness under low temperature conditions.

Classification :

Carbon Steel Coil

+8615376063736

sales@zyuansteelgroup.com

E-mail

PRODUCT DETAILS

Keywords: Steel Plate 、 Steel Coil

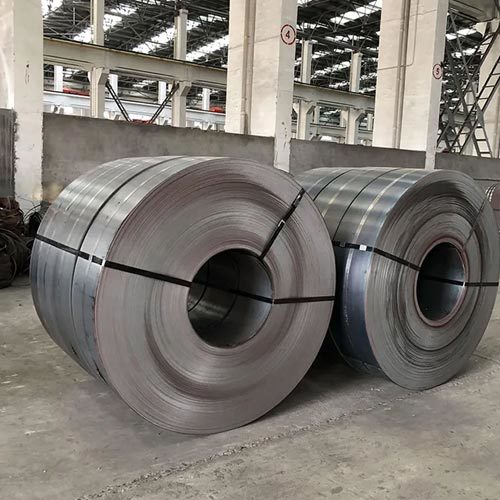

A633 Carbon Steel Coil Description

Product Parameters

Product Name	A633 Carbon Steel Coil
Production Process	Hot Rolling, Cold Rolling
Material Standards	AISI, ASTM, ASME, DIN, BS, EN, ISO, JIS, GOST, SAE, etc.
Width	45mm-2200mm
Length	Custom Size
Thickness	Hot Rolling: 2.75mm-100mm Cold Rolling: 0.2mm-3mm
Delivery Conditions	Rolling, Annealing, Quenching, Tempered or Standard
Surface Process	Ordinary, Wire Drawing, Laminated Film

Chemical Composition

A633	C	Mn	P	S	Si	V	Nb
GradeA	≤ 0.18	1.00-0.35	0.035	0.04	0.15-0.50	-	≤ 0.05
GradeC	≤ 0.20	0.15-0.50	0.035	0.04	0.15-0.50	-	0.01-0.05
GradeD	≤ 0.20	0.70-1.35	0.035	0.04	0.15-0.50	-	-
GradeE	≤ 0.22	1.15-1.50	0.035	0.04	0.15-0.50	0.04-0.11	-

Mechanical Properties

A633	Yield Strength			Tensile Strength			Elongation 200mm, min%	Elongation 50mm, min%
A633	65mm	65-100mm	100-150mm	65mm	65-100mm	100-150mm	Elongation 200mm, min%	Elongation 50mm, min%
Grade A	290	290	-	430-570	430-570	-	18	23
Grade C&D	345	315	-	485-620	450-590	-	18	23
Grade E	415	415	380	550-690	550-690	515-655	18	23

Physical Performance

Physical Performance	Metric	Imperial
Density	7.75g/cc	0.280 lb/in³

Scope of Application

ASTM A633 steel plate is mainly used in petroleum, chemical, power station, boiler and other industries, for the production of reactors, heat exchangers, separators, spherical tanks, oil and gas pipelines, liquefied gas tanks, shell nuclear reactor pressure, boiler drums, liquefied petroleum gas cylinders, high pressure water pipes, water turbines and other equipment and components.

CUSTOMER VISIT

In ZYUAN, more than 180 steel grades have either been used to substitute import or produced with foreign standards, more than 30 steel grades have been exported many developed countries and regions in Europe, America and Asia, setting up mighty image of brand.

Customer photo

FACTORY WORKSHOP

ZYUAN STEEL GROUP CO.,LTD has been founded over 20 years. And ZYUAN has 12 product series, 300 and more steel grades, 400 and more thickness specifications steel pipes, sheet, coils and other products such as low alloy high strength steel products and alloy structural steel products etc.

TEST

FAQ

Once the products received by customer were found not comply with the products or contract demands, what will you do?

A: We will compensate the customer for all the loss without any hesitation.

Do you provide samples Is it free or extra?

A: Yes, we could offer free samples.

What certifications do your products have?

A: We have ISO 9001, SGS, EWC and other certifications.

What kind of payment terms would you accept?

A: We always do T/T.30% T/T as deposit,70% T/T as balance.

What is the delivery time?

A: 10-15 days

What is your MOQ?

A: We will provide Original Mill Usually 25 tonnes, but it can be adjusted according to your needs and the actual situation of the inventory.

Carbon Steel Coil
